Specification:

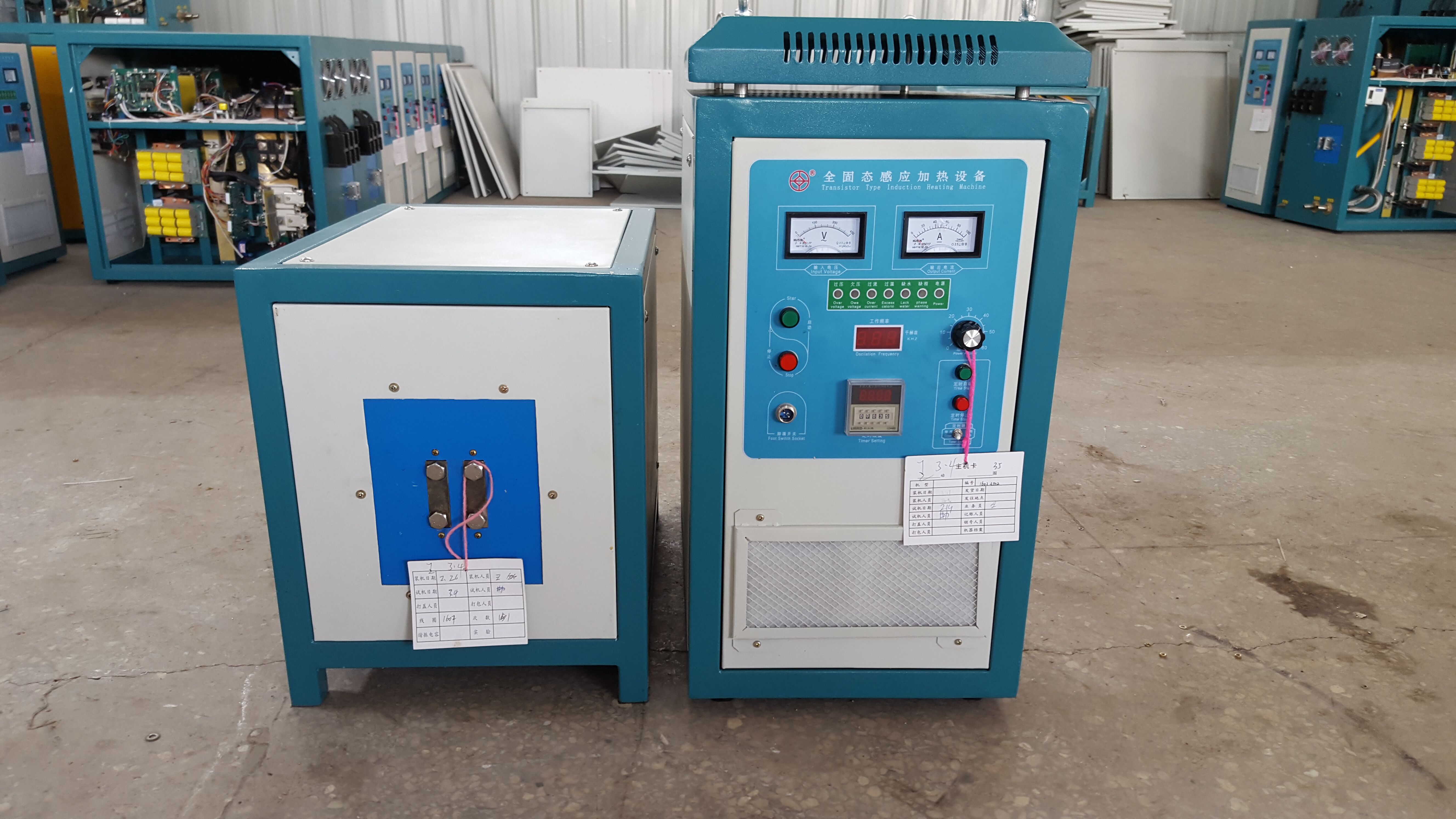

Technical parameters of  WZP-60

Input Voltage - Three phase 320-420 V +/-10% 50-60HZ
Input current - 3-60A
Output power - 3-35kw
Oscillation frequency -15-30KHZ
Cooling water pressure - 0.1-0.3MPA
Size (L*W*H) -     Generator 760*450*900mm Transformer 680*470*850mm

Net Weight - Generator 58KG
transformer 80kgs
Cooling water temperature - Below 50 degree

Accessories

+High frequency cable 2 piece
+Induction coil 1 piece
+Induction crucible 1 piece
+Foot switch 1 piece
+Shunt water valve 1 piece
+Water hose (standard configuration)
+User Manual 1 piece
