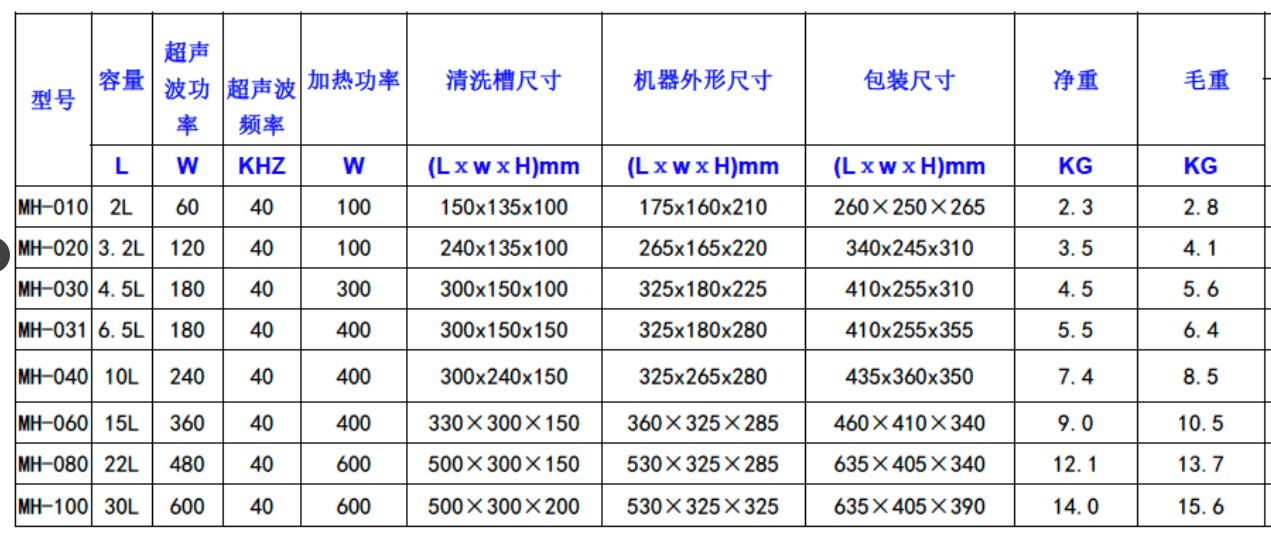

Specification:

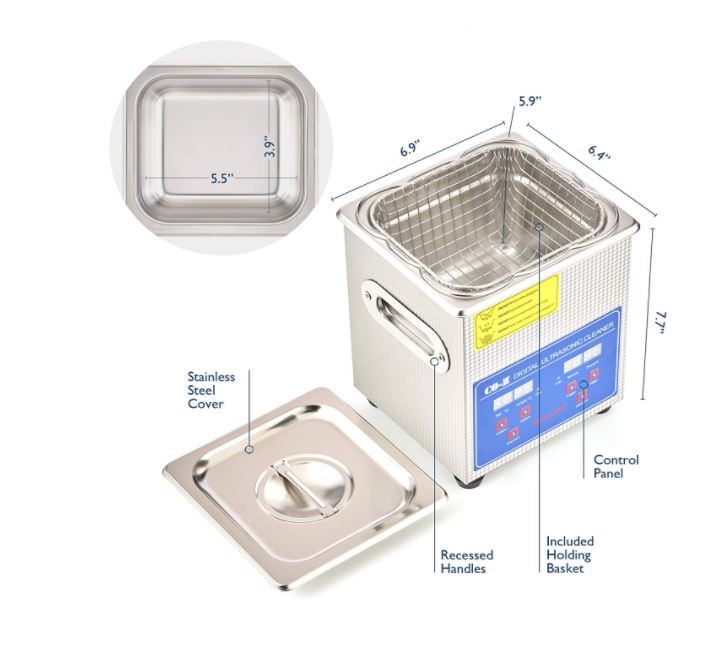

Accessorises
a. one piece main machine b. one piece soundproof lid
c. Power supply wire d. one piece mesh basket (optional)
e. one user manual.

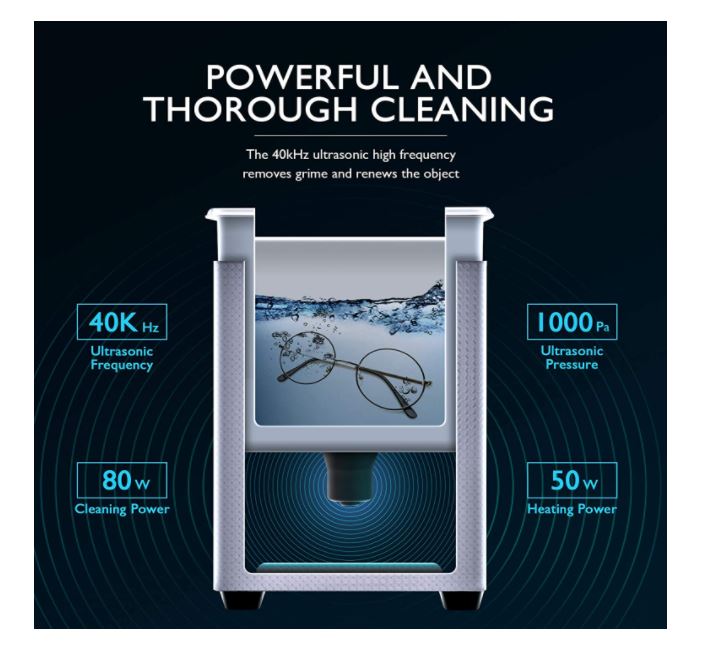

Ultrasonic Principle
Ultrasonic cleaning is on based on the cavitation effect caused
by high frequency ultrasonic wave vibration signal in the fluid.
Microscopic bubbles are formed, and they implode violently
causing the cavitation which create an intense scrubbing action
on the surface of the item being cleaned. The bubbles are small

enough to penetrate microscopic crevices, cleaning them thorou-
ghly and consistently.

Ultrasonic cleaning is extremely effective at removing dirt and
grime which would normally require tedious manual cleaning by
hand.It has been used to clean a wide variety of instruments and
mechanical parts such as carburetors, returning them to almost “like new” condition without damage to delicate parts.

Applications
Service line, Electron line, Medicament line, Laboratory,
Machine line, Horniness alloy line, Chemistry line, etc

Installation and preparation
a) After unpacking, check for if there is any loose parts.
b) Place the machine in a dry and ventilated place to ensure
that the machine is in a horizontal position;
c) Should connect the power plugs correctly and make sure it
is securely connected. Be sure to use a three-hole socket,
a reliable ground wire to ensure safety.
d) According to the need to add the appropriate amount of cleaning

The method of cleaning
Ordinary cleaning can be washed with water. When the product is not cleaned for a long time or more dirt,please add theappropriate cleaning fluid, it can enhance the super-cleaningeffect. For longer items, it can be segmented cleaning.

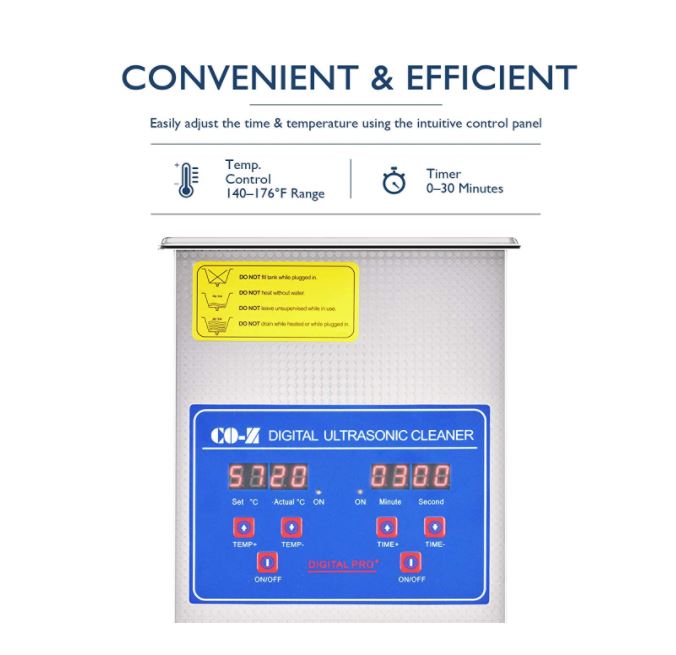

Operation process
a) Please ensure that the power supply is grounded. Add cleaning
solution to the cleaning tank, Plug in the power supply after
the temperature shows the current ambient temperature, the
temperature setting defaults to 0 degrees Celsius, working
hours shown as the default 3 minutes.
b) Adjust the ultrasonic working time: Each press TIMERΔ key
once, the time increases one minute, holds down this key,the
time can be increased continuously, Each press of TIMER ?
once, the time can be reduced by one minute, hold down the
button, continuous reduction of working hours.
c) Adjust the working temperature: Each press TEMPERATUREΔ key
once, the temperature is raised one degree centigrade.If you
hold down this key, the temperature will be continuously raised
one degree centigrade. Each press TEMPERATURE ? key once,
the temperature will be down one degree centigrade. Hold down
this button, the temperature can be continuously lowered one
degree centigrade, When the setting temperature below the
actual temperature,the operation is invalid. When the setting
temperature reaches the set temperature, the heating light is off.
The panel display temperature is the actual temperature when
Ultrasonic working.
d) Set a good time and temperature. Tap the temperature ON/OFF
switch, then press the ultrasonic ON/OFF switch. To stop the
heating or ultrasonic then press the corresponding ON/OFF
switch, the machine can be stopped heating or Ultrasonic working.

 Instructions after use how to care
a) Disconnect the machine power;
b) After the liquid to be cooled to below 40 °C . Discard the
cleaning solution and clean the tank body and the periphery
with a clean cloth. After use, store the product in a cool
dry place for future use. 5

Warning
a)Don’t plug in the machine with empty tank–be sure to fill
in proper amount of liquid before plug-in the machine.Otherwise,
the heater could be damaged.
b)Never run the machine with low level of liquid to avoid damaging
ultrasonic transducers and heater.
c)Please note that when you run heater, the liquid in the tank
could vapor in the long time period, please keep watching the
level of the liquid in the tank
d)Washing liquid spatters into the shaker results in creepage
and short circuit, and burn the wafer as well.
e)Electrical abnormity will burn the transistor.
f)High voltage brings damages to the circuit and indicating
lights etc.
